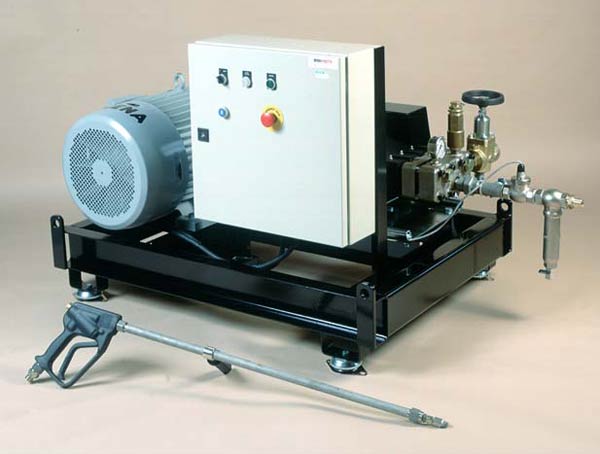

KV 500-30 / KV 400-37 / KV 320-45 Mobile cold water cleaners Electric powered heavy duty high pressure units in stationary and mobile versions. Also available in diesel powered versions KV heavy duty models are complete with pump, motor and start cabinet. All mounted on coated steel frame with lifting eyes and fitted with vibration dampers.
Frame Heavy epoxy treated steel with lifting hooks and vibration dampeners.
Motor 3 phase, class f, protected by a thermal overload switch.
Pump Low rotating "triplex" plunger HP pump suitable for temperature to 30º C. Double pressure packings with water spill venting. Oil-bath mechanical parts with spec cooling system and splash lubrication. Only periodical oil check / change are required. All parts subject to wear are easely reached and can be replaced very quickly with or no need for spec tools. Pumpbody in cast iron. Pumphead in stainless steel. Self-adjusting shaft bearings with double roller rim. For-ged steel connecting rods with antifriction bearings. Crankshaft in nitrided, hardened and tempered alloy steel. Guide pistons in surface-treated steel. Plungers in stainless steel with ceramic coating. Valves totally mode in stainless steel.
Water supply Inlet for hose connection. Outlet for HP hose connection. Adaptor for more guns.
Filters Selfcleaning double filter in bronze/stainless steel.
Electric panel Painted steel box. Press-buttons for aut. Y/D starter. Emergency stop. Hours run meter. Flow-switch relay. Timer for stop delay. Control lamps.
High-pressure equipment To ensure that the HP water can be utilized for cleaning operations, we offer: Unloading and control valves, mechanical or automatic. HP guns. HP lances. Nozzles. Tube cleaning nozzles. Rotating cleaning nozzles. Cleaning heads. Surface cleaners. Tank cleaning head. Sandblasting head. Hose reels. High-pressure hoses.
Our cleaning tools demonstrate an implicitly high efficiency.
Warranty 12 Months Right to alterations reserved.
MODEL
CLENA
KV 500-30
KV 400-37
KV 320-45
WORK PRESS.
BAR/PSI
510/7000
400/5600
320/4500
OUTPUT
L/MIN
30
37
45
MOTOR
KW/HP
30/40
30/40
30/40
CURRENT
VOLT
3 x 220/380/415/440 50/60 HZ
LENGTH
MM
1150
1150
1150
WIDTH
MM
820
820
820
HEIGHT
MM
800
800
800
WEIGHT
KG
370
370
370
KV 1200-12 / KV 1000-15 / KV 750-23 / KV 700-20 Mobile cold water cleaners Electric powered heavy duty high pressure units in stationary and mobile versions. Also available in diesel powered versions KV heavy duty models are complete with pump, motor and start cabinet. All mounted on coated steel frame with lifting eyes and fitted with vibration dampers.
Frame Heavy epoxy treated steel with lifting hooks and vibration dampeners.
Motor 3 phase, class f, protected by a thermal overload switch.
Pump Low rotating "triplex" plunger HP pump suitable for temperature to 30º C. Double pressure packings with water spill venting. Oil-bath mechanical parts with spec cooling system and splash lubrication. Only periodical oil check / change are required. All parts subject to wear are easy reached and can be replaced very quickly with or no need for spec tools. Pump body in cast iron. Pump head in stainless steel. Self-adjusting shaft bearings with double roller rim. For-ged steel connecting rods with antifriction bearings. Crankshaft in nitrided, hardened and tempered alloy steel. Guide pistons in surface-treated steel. Plungers in stainless steel with ceramic coating. Valves totally mode in stainless steel.
Water supply Float tank in stainless steel. Max.- and low water switch. Multistage in-line booster pump. Inlet for hose connection. Outlet for HP hose connection.
Filters Self-cleaning double filter in bronze/stainless steel.
Electric panel Painted steel box. Press-buttons for aut. Y/D starter. Emergency stop. Hours run meter. Flow-switch relay. Low water relay. Timer for stop delay. Control lamps.
High-pressure equipment To ensure that the HP water can be utilized for cleaning operations, we offer: Unloading and control valves, mechanical or automatic. HP guns. HP lances. Nozzles. Tube cleaning nozzles. Rotating cleaning nozzles. Cleaning heads. Surface cleaners. Tank cleaning head. Sandblasting head. Hose reels. High-pressure hoses. Our cleaning tools demonstrate an implicitly high efficiency.
Warranty 12 Months Right to alterations reserved.
MODEL
CLENA
KV 500-30
KV 400-37
KV 320-45
WORK PRESS.
BAR/PSI
510/7000
400/5600
320/4500
OUTPUT
L/MIN
30
37
45
MOTOR
KW/HP
30/40
30/40
30/40
CURRENT
VOLT
3 x 220/380/415/440 50/60 HZ
LENGTH
MM
1150
1150
1150
WIDTH
MM
820
820
820
HEIGHT
MM
800
800
800
WEIGHT
KG
370
370
370
Special models
Movable diesel-powered hot water model cpl. with equipments and in covered version. 400/500 bars and 37/30 l/min.
Clena has for more than 25 years been producing high pressure cleaners to fit the demands of the professional customer.
