General Specs
Steam
0.6 - 2.7 GPM • 100 - 800 PSI
Water Pressure Washers
2.2 - 5.3 GPM • 600 - 3000 PSI
Steam & Hot Water Pressure Washers
140° - 200° F Hot Water
320° F pressurized water flashing to steam
Electrically heated or Oil, LP, or Natural Gas Fired
Standard models certified to UL 1776 and
M89 by ETL
Explosion-proof models available

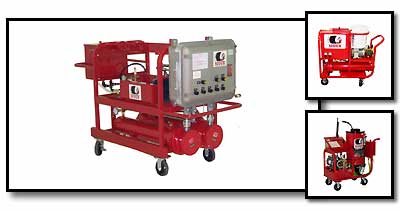

Steam cleaner, hot water and cold water pressure washer in one compact machine. For commercial and industrial use, steam cleaning is excellent for cleaning grease and oil, sterilizing, disinfecting, degreasing, dissolving resins, de-icing, flushing away chemicals and poisons, and degassing. Hot water pressure washing cuts through encrusted dirt, grime, and other dried on substances. Cold Water pressure washing is great for vehicle, facilities, and ground maintenance. Heavy-duty construction and high-quality components ensure long last equipment.
Sioux is the industry leader in custom-built industrial and commercial pressure washers, steam cleaners and other cleaning equipment. Thousands of units in use world-wide. Options: Alternate electricals including 50 Hz, water tanks, stainless steel frames and heating coils, gas engines, diesel engines, generators, custom dimensions, and many more! Available trailer, skid, or caster mounted. Quality since 1939!

Model
Number
Flow
GPM (LPM)
Pressure
PSI (BAR)
Temperature
Deg° F (Deg° C)
Standard Electricals
Volts / Phase / Frequency
Hot Water Steam Hot Water Steam Hot Water Steam
H2.2*1000 2.2 (8.3) 1.2 (4.5) 1000 (69) 300 (20.6) 200° (93°) 320° (160°) 115 / 1 / 60
H3*750 3.0 (11.4) 1.7 (6.4) 750 (52) 225 (15.5) 200° (93°) 320° (160°) 115 / 1 / 60
H2.2*1300 2.2 (8.3) 1.2 (4.5) 1300 (90) 400 (27.6) 200° (93°) 320° (160°) 115 / 1 / 60
H3*1500 3.0 (11.4) 1.7 (6.4) 1500 (103) 450 (31.1) 200° (93°) 320° (160°) 230 / 1 / 60
H3.5*1300 3.5 (13.2) 2.0 (7.6) 1300 (90) 400 (27.6) 200° (93°) 320° (160°) 230 / 1 / 60
H4*2000 4.0 (15.1) 2.2 (8.3) 2000 (138) 600 (41.4) 200° (93°) 320° (160°) 230 / 1 / 60
H3.5*3000 3.5 (13.2) 2.0 (7.6) 3000 (207) 850 (58.6) 200° (93°) 320° (160°) 230 / 3 / 60
H4*2800 4.0 (15.1) 2.2 (8.3) 2800 (193) 800 (55.16) 200° (93°) 320° (160°) 230 / 3 / 60
H5.3*2000 5.3 (20.1) 2.7 (10.2) 2000 (138) 600 (41.4) 200° (93°) 320° (160°) 230 / 3 / 60
H5.3*2800 5.3 (20.1) 2.7 (10.2) 2800 (193) 800 (55.16) 200° (93°) 320° (160°) 230 / 3 / 60
*Fuel-fired models are available in Diesel/Oil (D), LP Gas (L), or Natural Gas (N).
Stock/Quick Ship Models: Models in bold are the most popular. Sioux stocks parts for these models and they are available from stock or can be shipped faster. Consult factory for details.
All-Electric Combination Steam Cleaners / Pressure Washer Models
Steam Cleaners / 140° Pressure Washers
Model
Number
Flow
GPM (LPM)
Pressure
PSI (BAR)
Temperature
Deg° F (Deg° C)
Standard Electricals
Volts / Phase / Frequency
Hot Water Steam Hot Water Steam Hot Water Steam
600 PSI
E-2.6-HS-600 2.6 (9.8) 0.8 (3.1) 600 (41) 200(6.9) 140° (60°) 320° (160°) 240 or 480 / 3 / 60
EN-40/140-H4-600 2.3 (8.7) 0.66 (2.5) 600 (41) 100 (6.9) 140° (60°) 320° (160°) 240 or 480 / 3 / 60
EN-55/175-H4-600 2.9 (10.9) 0.9 (3.4) 600 (41) 100 (6.9) 140° (60°) 320° (160°) 240 or 480 / 3 / 60
EN-90/270-H4-600 4.5 (17.1) 1.5 (5.6) 600 (41) 100 (6.9) 140° (60°) 320° (160°) 480 / 3 / 60
EN-115/345-H4-600 5.7 (21.6) 1.9 (7.2) 600 (41) 100 (6.9) 140° (60°) 320° (160°) 480 / 3 / 60
Models in bold are the most popular. Sioux stocks parts for these models and they are available from stock or can be shipped faster. Consult factory for details.
Steam Cleaners / 180° Pressure Washers
EN-40/100-H8-600 EN-55/120-H8-600 EN-90/190-H8-600 EN-115/240-H8-600
EN-40/100-H8-1200 EN-55/120-H8-1200 EN-90/190-H8-1200 EN-115/240-H8-1200
Model
Number
Flow
GPM (LPM)
Pressure
PSI (BAR)
Temperature
Deg° F (Deg° C)
Standard Electricals
Volts / Phase / Frequency
Hot Water Steam Hot Water Steam Hot Water Steam
600 PSI
EN-40/100-H8-600 1.6 (6.1) 0.66 (2.5) 600 (41) 100 (6.9) 180° (82°) 320° (160°) 240 or 480 / 3 / 60
EN-55/120-H8-600 2.0 (7.6) 0.9 (3.4) 600 (41) 100 (6.9) 180° (82°) 320° (160°) 480 / 3 / 60
EN-90/190-H8-600 3.2 (12.1) 1.5 (5.6) 600 (41) 100 (6.9) 180° (82°) 320° (160°) 480 / 3 / 60
EN-115/240-H8-600 4.0 (15.1) 1.9 (7.2) 600 (41) 100 (6.9) 180° (82°) 320° (160°) 480 / 3 / 60
1200 PSI
EN-40/100-H8-1200 1.6 (6.1) 0.66 (2.5) 1200 (83) 100 (6.9) 180° (82°) 320° (160°) 240 or 480 / 3 / 60
EN-55/120-H8-1200 2.0 (7.6) 0.9 (3.4) 1200 (83) 100 (6.9) 180° (82°) 320° (160°) 240 or 480 / 3 / 60
EN-90/190-H8-1200 3.2 (12.1) 1.5 (5.6) 1200 (83) 100 (6.9) 180° (82°) 320° (160°) 480 / 3 / 60
EN-115/240-H8-1200 4.0 (15.1) 1.9 (7.2) 1200 (83) 100 (6.9) 180° (82°) 320° (160°) 480 / 3 / 60
General Specs
• 2.3 - 4.0 GPM (Washer)
• 0.6 - 1.9 GPM (Steam)
• 600 - 1,200 PSI (Washer)
• 100 PSI (Steam)
• 140° - 180° F Hot Water (Washer)
• 100% Electrically Heated Water
• Standard models certified to UL 1776 and
  CAN/CSA B140.11-M89 by ETL
• Explosion-proof models certified to UL 1203 and   CAN/CSA-c-22.2 No. 197-92
