蒸汽发生器

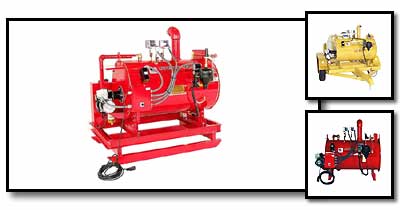

The Sioux Steam-Flo is a perfect source of low pressure steam for a variety of commercial and industrial applications. This unit can be used in place of a conventional boiler for a variety of commercial and industrial applications. The generator produce 370-845 lbs. per hour ofsaturated steam in minutes. The Steam-Flo provides continuous, unlimited steam. The unit is easy to maintain and built to last. Mountings include portable, stationary, or over-the-road trailer. The unit can be outfitted with an optional water tank and generator for completely self-contained operation. Because of its portability, the Steam-Flo is excellent for use in overflow production and outlying area.
Steam-Flo generators are often used in commercial greenhouses and nurseries. The vessel is registered with the National Board of Boiler and Pressure Vessel Inspectors, meets requirements of CSD-1 of the ASME Code, and is built to Section IV of the ASME code. Sioux has manufactured the Steam-Flo steam generator since 1939. Thousands are in operation worldwide, providing years of trouble-free service.
Model Boiler Steam Output Firing Rate Input Maximum Operating
Number HP Lbs. / hr (Kg / hr) #2 Fuel Oil BTU / Hr Working Pressure Working Pressure
      GPH (LPH)   PSI (BAR) PSI (BAR)
SF-11 10.7 370 (167.8) 3.05 (11.5) 427,000 15 (1.03) 5-10 (0.34 - 0.69)
SF-20 19.7 680 (308.4) 5.65 (21.4) 791,000 15 (1.03) 5-10 (0.34 - 0.69)
SF-25 24.5 845 (383.3) N/A 1,010,000 15 (1.03) 5-10 (0.34 - 0.69)
Model Maximum Heating Tube Approximate Optional Fuel
Number Temperature Surface Area Boiler Volume Tank Capactiy
  Deg° F (Deg° C) FT (m) Gal (Ltr) Gal (Ltr)
SF-11 250 (121) 65 (6.0) 55 (208) 35 (132)
SF-20 250 (121) 118 (11.0) 135 (511) 65 (246)
SF-25 250 (121) 118 (11.0) 135 (511) N/A
Number Lbs (Kg) In (Cm) Lbs (Kg) In (Cm)
SF-11 900 Lbs. (408) 60" x 40" x 51" (152 x 101 x 155) 1,000 Lbs. (454) 66" x 46" x 55" (168 x 167 x 140)
SF-20 1,200 Lbs. (544) 70" x 51" x 61" (178 x 130 x 155) 1,300 Lbs. (590) 76" x 57 " x 65" (193 x 145 x 165)
SF-25 1,200 Lbs. (544) 73" x 58" x 63" (185 x 147 x 160) 1,300 Lbs. (590) 79" x 64" x 68" (200 x 163 x 173)
